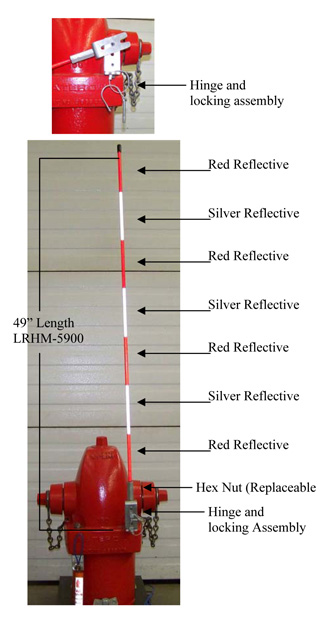

LRHM-5900: Hinged Hydrant Marker
Hinged Hydrant Marker
Catalog# LRHM-5900
"Spring-less and Locking"
Fully Wrapped
Warranty: One year against workmanship
SPECIFICATIONS
Aluminum Hex Base with Rod
Part# LRHM-5895
Rod assembly length 45"
Rod-Fiberglass
Polyester Pultruded Rod
Rod UV Resin (0.375”)
4—6” Red wraps and 3—6” silver wraps
(3M scotchlite plus 680 reflective film)
Aluminum Rod Base:
Part # LRHM-5896
2 ¼” long 6-sided hex bar with 3/8”
threaded hole, ½” deep and a 1½” deep x 3/8”
Hole to mount rod assembly and 1— 3/8” x ¾”
Tapper-headed bolt
Aluminum Hinge Assembly:
Part #LRHM-5897
3 ½” long x 1½” x 1½” horseshoe shape with 2-
slotted holes an 1¼” long x 5/16” wide for horseshoe
to pivot. 2-tappered slots 3/8” to 5/16” to allow hinge
mechanism to unlock 3/8” hole in the top of the
horseshoe assembly to mount the rod.
Aluminum Mount Base:
Part # LRHM-5898
Block is 3¼” long x 1½” wide x 1” wide with 3/8”
threaded mount hole 2—5/16” holes to hold hinge
assembly. 2—5/16” roll pins x 1½” long
Locking System:
¼” x 2” Locking Pin
With 6” x 1/16” safety cable
Aluminum Mount Bracket:
Part # LRHM-5899
1½” wide x 3½” long x ¼” thick mount hole 11/16” with 3/8” hole to mount base assembly. 3/16” hole for safety cable
